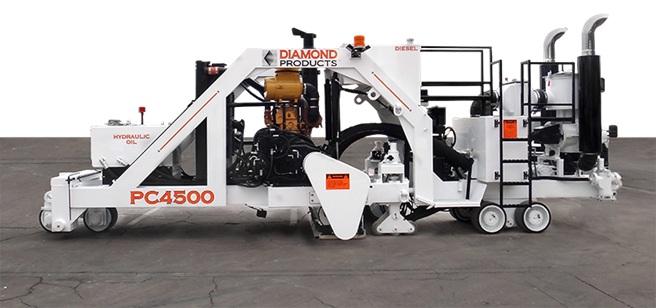

Bump Grinder
PC4500
Diamond Products
(click image to enlarge)
Quick Overview
Length: 28'
Width: 7"
Height: 9' 6"
Weight: 48,500 lbs.
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email:
Sales@marathontool.com
Can't find what you want? Give us a call and we can help you find it.
Details
Caterpillar Engine:
Model C15/540 Horsepower
Turbocharged/Charge air cooled
Electronically controlled
Maximum fuel consumption is 28.3 GPH
Fuel capacity - 200 gallons
Maximum engine speed - 2100 RPM
Engine oil pressure gauge (with dual low pressure shutdowns)
Engine coolant temperature gauge (with dual high temperature shutdowns)
Head Drive Power:
Power from engine is transmitted through fluid clutch gearbox
Power is transmitted to the cutting head using a Poly Chain GT Carbon belt
Blades:
Accepts 16"-18" blades on a 8" diameter spindle
50" Stackable grinding
Operations Speeds: 1,900 RPM - maximum in High Range and 1,315 RPM maximum in Low Range
Propulsion:
4 hydraulic wheel motor assemblies with integral brake and two speed function
Speed is 0-225 FPM forward/revers
Controls & Instrumentation:
Electronic joystick controlling
Lighted for night time operations
Ground drive pressure gauge
Blade coolant pressure gauge and alarm
Engine tachometer
Engine voltage meter
Additional Information
Manufacturer: Diamond Products
For More Information on the Bump Grinder,
[Click Here]
to Link to Manufacturer Web Site
