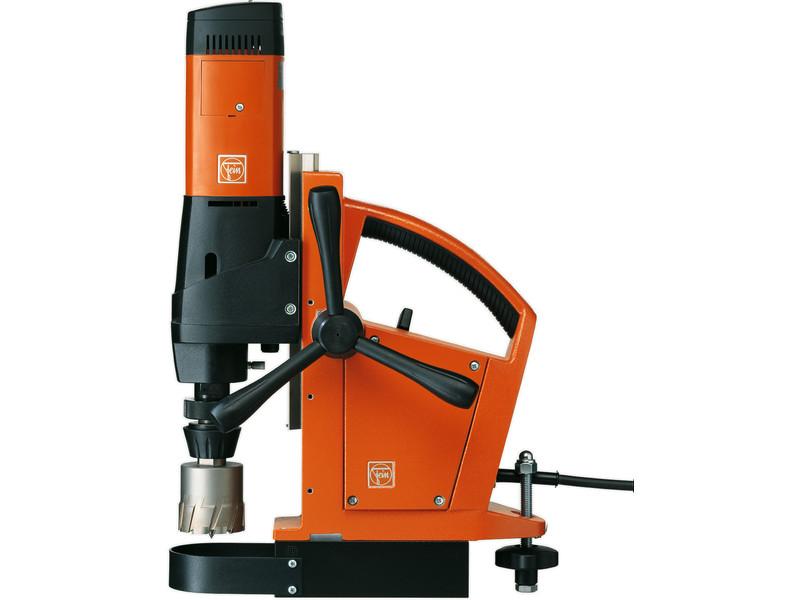

Mag Drill unit up to 2-9/16 in
KBM 65 Q
Fein Tools
Powerful core drilling unit with two-speed gearbox for workshops.
(click image to enlarge)
Quick Overview
Has enough power for tough applications, such as core drilling up to 65 mm diameters or thread cuts up to M 20.
Flexible accessories use and accuracy with a combination of QuickIN and MT 3 adapters.
Adjustable double dovetail guide enables use of long drilling accessories without removing the machine from the workpiece.
Optimum power-to-weight ratio.
Mechanical two-speed gearbox.
2 electronic speed steps per gear.
Speed-controlled tacho electronics.
Powerful magnet.
Integrated cooling lubricant unit.
Electronic overload protection.
Self-start lock.
available in 230 V only
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email:
Sales@marathontool.com
Can't find what you want? Give us a call and we can help you find it.
Details
Core bit max. dia.:
2-9/16 in
Core drill, max. drilling depth:
2 in
Twist drill max. dia.:
7/8 in
Tapping:
M 20 in
Max. countersinking dia.:
2 in
Reaming max. dia.:
7/8 in
Power consumption:
1,460 Watts
Power output:
650 Watts
1st gear - slow/fast:
125/250 rpm
2nd gear - slow/fast:
255/510 rpm
Core bit holder:
QuickIN
Chuck:
MT 3
Stroke:
5-11/16 in
Total stroke range:
13 in
Magnetic holding force:
2,700 lbs
Magnetic base sizes:
7-5/8 x 3-5/8 in
Cable with plug:
13 ft
Weight according to EPTA:
41.9 lbs
Price Includes:
1 case
1 coolant pump
1 safety strap
1 chip hook
1 1/2 in 3-jaw chuck
1 drift
1 touch guard
1 5/8 in 3-jaw chuck
2 QuickIN Weldon adapters
4 centering pins
Additional Information
Manufacturer: Fein Tools
For More Information on the Mag Drill unit up to 2-9/16 in,
[Click Here]
to Link to Manufacturer Web Site
