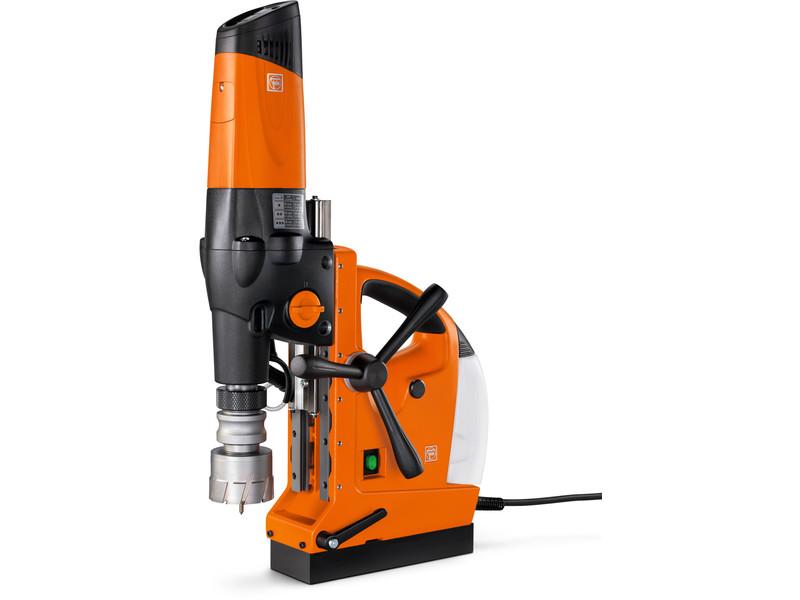

Mag Drill unit up to 3-1/8 in
KBM 80 U
Fein Tools
Multi-purpose core drill unit with outstanding performance for the workshop.
(click image to enlarge)
Quick Overview
Optimal cutting speed when core drilling, twist drilling, tapping, countersinking, and reaming, due to a mechanical three-speed gearbox, and electronic speed reduction.
Flexible accessories use and accuracy with a combination of QuickIN and MT 3 adapters.
High torque, FEIN high-performance motor for efficient core drilling up to 3-1/8 in and tapping up to 1-1/8 in.
QuickIN MAX fast-change system.
Extra long stroke.
Reversible.
Speed-controlled tacho electronics.
Powerful magnet.
Magnet monitor system.
Visual magnetic holding force indicator.
Fine drill spindle adjustment.
Automatic coolant supply.
Torque slip clutch.
Viseo Touch Pad controls.
"Memory function" speed storage.
Electronic overload protection.
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email:
Sales@marathontool.com
Can't find what you want? Give us a call and we can help you find it.
Details
Core bit max. dia.:
3-1/8 in
HSS core bit max. dia.:
2-9/16 in
Core drill, max. drilling depth:
2 in
Twist drill max. dia.:
1-1/4 in
Tapping:
1-1/8 in
Max. countersinking dia.:
2 in
Reaming max. dia.:
1-3/16 in
Power consumption:
2,000 Watts
Power output:
900 Watts
1st gear:
110-180 rpm
2nd gear:
160-260 rpm
3rd gear:
350-580 rpm
Core bit holder:
QuickIN/QuickIN MAX
Chuck:
MT 3
Stroke:
5-11/16 in
Total stroke range:
11-3/16 in
Drill stand adjustment range:
± 5/32 in
Drill stand angular adjustment:
± 11°
Magnetic holding force:
4,050 lbs
Magnetic base sizes:
10-11/16 × 3-9/16 in
Cable with plug:
13 ft
Weight according to EPTA:
55.9 lbs

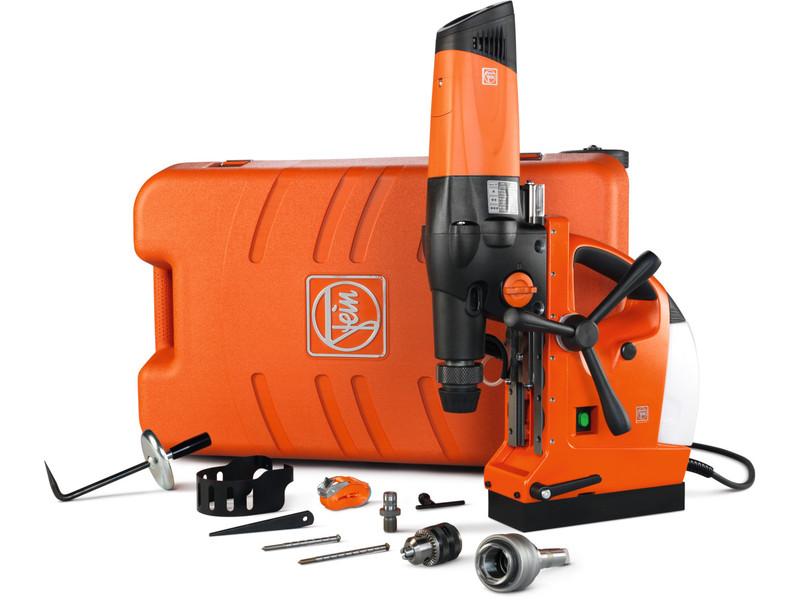

Price Includes:
1 case
1 1/2 in 3-jaw chuck
1 touch guard
1 coolant tank
1 safety strap
1 chip hook
1 drift
1 QuickIN adapter for M18 x 6 P 1.5
2 centering pins
Additional Information
Manufacturer: Fein Tools
For More Information on the Mag Drill unit up to 3-1/8 in,
[Click Here]
to Link to Manufacturer Web Site
