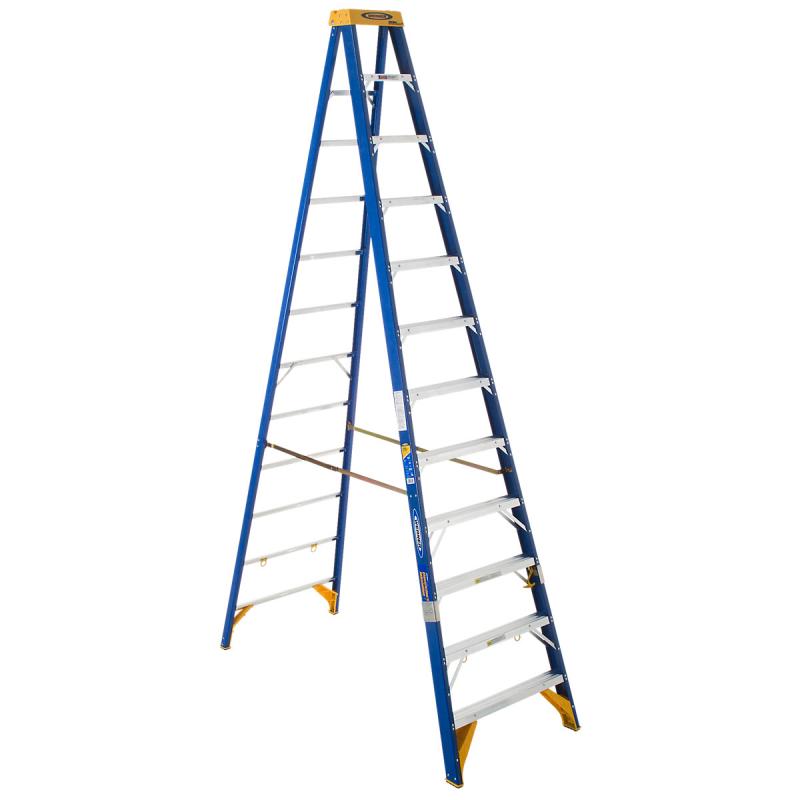

OBEL12 12' Type IAA Fiberglass Electricians JobStation
OBEL12
Werner Co.
The Old Blue Series Electrician's ladder is not your ordinary stepladder -- it's a Jobstation. These Jobstations save time and increase productivity on the job. With a duty rating of 375 pounds, the Old Blue series features customized HolsterTops with ToolLasso sockets to accommodate even more tools. Wire spool holders for both large and small spools and conduit holders with a built-in cutting system make these ladders ideal for electricians. The EDGE bracing system helps to decrease damage to the rail. Fiberglass rails are non-conductive.
(click image to enlarge)
Quick Overview
"
Performance Overview
"
Style
Size
Reach Height
Load Capacity
Type
Single Sided
12'
16'
375 lbs.
Type IAA Duty Rating
Features include:
Customized HolsterTop with Lock-In System secures tools from falling. 3 ToolLasso included.
Full set of rear horizontals spaced one per foot
Slip-resistant TRACTION-TRED steps are double riveted and knee-braced
Heavy duty internal spreaders
The EDGE bracing system helps to decrease damage to rail
Shoe pads riveted to the EDGE structure
Convenient conduit cutting system
HolsterTop customized for electricians
Built-in wire spool holders for both large and small spools
Energy Diffusing Geometry
Every rivet backed up by metal plate or washer to protect rails
The blue and yellow ladder is an exclusive registered trademark of Werner Co
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email:
Sales@marathontool.com
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Top Dimension:
5-3/4" x 13"
Front Rails Dimension:
3-1/8"
Front Flange Dimension:
1-3/16"
Rear Rails Dimension:
1-7/8"
Rear Flange Dimension:
1-3/16"
Steps Dimension:
3"
Specifications
Size:
12'
Reach Height:
16'
Max. Standing Height:
9'7"
Load Capacity:
375 lbs.
Type:
Type IAA Duty Rating
Performance Rating:
5 Star
Material:
Fiberglass
Approx. Width:
33-7/8"
Approx. Spread:
78-1/4"
With Pail Shelf:
No
Spreader Material:
Steel
Certifications:
ANSI A14.5 (2007); OSHA
Approx. Cu. Ft. Per Unit:
15
Approx. Shipping Wt. Lbs.:
51.5
Additional 7400 Series Models:
Model No.
Size
Reach Height
Max. Standing Height
Approx. Width
Approx. Spread
Approx. Cu. Ft. Per Unit
OBEL04
4'
8'
1'11"
19-7/8"
29"
3
OBEL06
6'
10'
3'10"
23-3/8"
41-1/4"
5.3
OBEL08
8'
12'
5'9"
26-7/8"
53-5/8"
8.1
OBEL10
10'
14'
7'8"
30-3/8"
65-7/8"
12.5
OBEL12
12'
16'
9'7"
33-7/8"
78-1/4"
15
Additional Information
Manufacturer: Werner Co.
