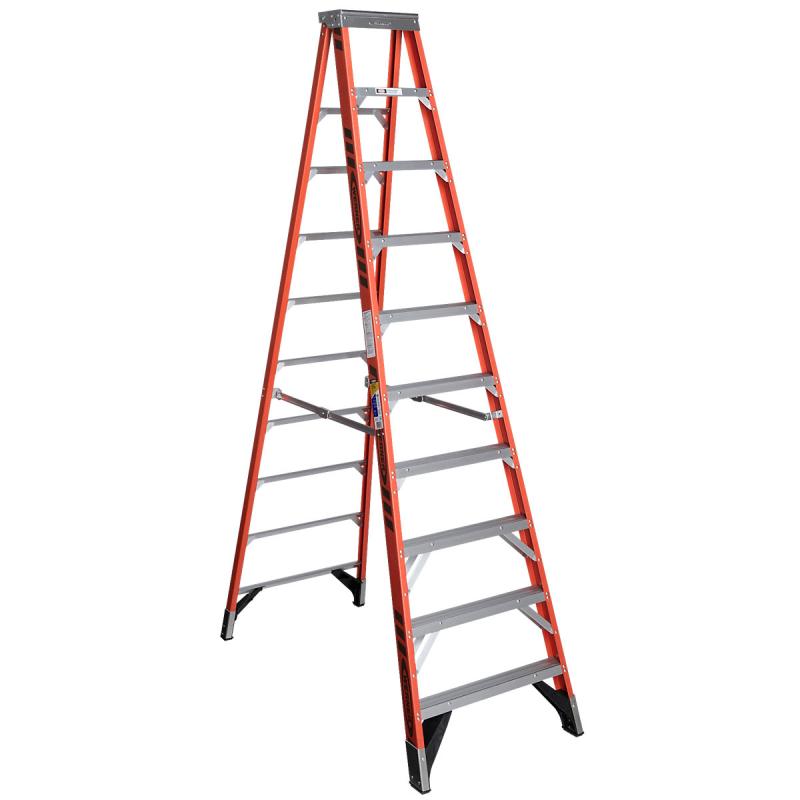

7410 10' Type IAA Fiberglass Step Ladder
7410
Werner Co.
Built to last, the Werner 375-pound duty rated 7400 ladders are rugged and ready for the job. These ladders feature extra heavy duty aluminum HolsterTops, internal spreaders and external rail shields for long lasting durability. With the EDGE bracing system and GLAS MARK Violator stripes on the rails, the 7400 series is built to handle the worksite and stands ready for tough jobs. Fiberglass rails are non-conductive for working near electricity.
(click image to enlarge)
Quick Overview
"
Performance Overview
"
Style
Size
Reach Height
Load Capacity
Type
Single Sided
10'
14'
375 lbs.
Type IAA Duty Rating
Features include:
Extra heavy duty aluminum HolsterTop® with thick side plates
Back-up plates reinforce all top connectors
Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
Slip-resistant TRACTION-TRED® steps are double riveted and have extra wide knee braces
Full set of rear horizontals are knee braced and spaced one per foot
Extra heavy duty internal aluminum spreaders
Aluminum external rail shield helps protect against abrasion damage
Glas*Mark® Violator stripes on rails allow ladder to be more visible
Slip-resistant foot pads attached to the EDGE® structure
The EDGE® bracing system helps to decrease damage to rail
Every rivet backed up by metal, metal plates or washers to protect rails
Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email:
Sales@marathontool.com
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Top Dimension:
7-1/4" x 14-7/8"
Front Rails Dimension:
3-1/8"
Front Flange Dimension:
1-3/16"
Rear Rails Dimension:
1-7/8"
Rear Flange Dimension:
1-3/16"
Steps Dimension:
3"
Specifications
Size:
10'
Reach Height:
14'
Max. Standing Height:
7'8"
Load Capacity:
375 lbs.
Type:
Type IAA Duty Rating
Performance Rating:
5 Star
Material:
Fiberglass
Approx. Width:
32"
Approx. Spread:
67-1/2"
With Pail Shelf:
No
Spreader Material:
Aluminum
Certifications:
ANSI A14.5 (2007); OSHA
Approx. Cu. Ft. Per Unit:
11.4
Approx. Shipping Wt. Lbs.:
40.5
Additional 7400 Series Models:
Model No.
Size
Reach Height
Reach Height
Reach Height
Max. Standing Height
Approx. Width
7403
3'
1'
1'
19-3/4"
24-3/8"
2.5
7404
4'
1'11"
1'11"
21-1/2"
30-1/2"
3.5
7405
5'
2'10"
2'10"
23-1/4"
36-3/4"
4.6
7406
6'
3'10"
3'10"
25"
42-7/8"
5.8
7407
7'
4'9"
4'9"
26-3/4"
49"
7.1
7408
8'
5'9"
5'9"
28-1/2"
55-1/4"
8.5
7410
10'
7'8"
7'8"
32"
67-1/2"
11.4
Additional Information
Manufacturer: Werner Co.
