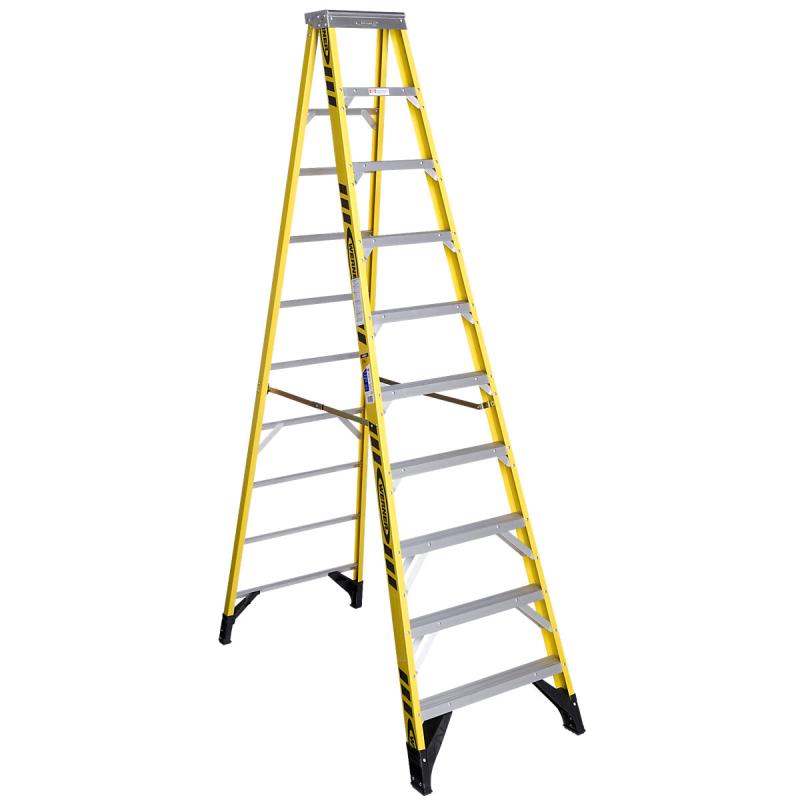

7310 10' Type IAA Fiberglass Step Ladder
7310
Werner Co.
Werner 7300 stepladders have a duty rating of 375 pounds and feature heavy duty aluminum HolsterTops. With a full set of horizontals and heavy duty internal spreaders, these ladders are built for the long haul. The molded external rail shields and EDGE bracing system help decrease damage to the rails. The slip-resistant TRACTION-TRED steps are single riveted and have extra wide knee braces. The GLAS*MARK Violator stripes increase the visibility of the ladder on the jobsite. Fiberglass rails are non-conductive for working near electricity.
(click image to enlarge)
Quick Overview
Performance Overview
Style
Size
Reach Height
Load Capacity
Type
Single Sided
10'
14'
375 lbs.
Type IAA Duty Rating
Features include:
Extra heavy duty aluminum HolsterTop with thick side plates
Shoulder bolt and lock nut on top hinge;4 solid aluminum rivets attach top to each front rail
Slip-resistant TRACTION-TRED steps are single riveted and have extra wide knee braces
Heavy duty internal spreaders
Full set of rear horizontals spaced one per foot
Glas Mark Violator stripes on rails allow ladder to be more visible
The EDGE bracing system helps to decrease damage to rail
Molded external rail shield helps protect against abrasion damage
Slip-resistant foot pads attached to the EDGE structure
Plastic external rail shield helps protect against abrasion damage
Every rivet backed up by metal, metal plates or washers to protect rails
Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email:
Sales@marathontool.com
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Top Dimension:
7-1/4" x 14-7/8"
Front Rails Dimension:
3-1/8"
Front Flange Dimension:
1-3/16"
Rear Rails Dimension:
1-7/8"
Rear Flange Dimension:
1-3/16"
Steps Dimension:
3"
Specifications
Size:
10'
Reach Height:
14'
Max. Standing Height:
7'8"
Load Capacity:
375 lbs.
Type:
Type IAA Duty Rating
Performance Rating:
5 Star
Material:
Fiberglass
Approx. Width:
32"
Approx. Spread:
66-5/8"
With Pail Shelf:
No
Spreader Material:
Steel
Certifications:
ANSI A14.5 (2007); OSHA
Approx. Cu. Ft. Per Unit:
11.4
Approx. Shipping Wt. Lbs.:
40.5
Additional 7400 Series Models:
Model No.
Size
Height (Size) to Platform
Rail Length
Reach Height
Max. Standing Height
Load Capacity
7303
3'
7'
1'
19-3/4"
23-1/2"
No
7303S
3'
7'
1'
19-3/4"
23-1/2"
Yes
7304
4'
8'
1'11"
21-1/2"
29-3/4"
No
7304S
4'
8'
1'11"
21-1/2"
29-3/4"
Yes
7305
5'
9'
2'10"
23-1/4"
35-7/8"
No
7305S
5'
9'
2'10"
23-1/4"
35-7/8"
Yes
7306
6'
10'
3'10"
25"
42"
No
7306S
6'
10'
3'10"
25"
42"
Yes
7308
8'
12'
5'9"
28-1/2"
54-3/4"
No
7308S
8'
12'
5'9"
28-1/2"
54-3/4"
Yes
7310
10'
14'
7'8"
32"
66-5/8"
No
7310S
10'
14'
7'8"
32"
66-5/8"
Yes
7312
12'
16'
9'7"
35-1/2"
79"
No
7312S
12'
16'
9'7"
35-1/2"
79"
Yes
FIAA06
6'
10'
3'10"
25"
42"
No
Additional Information
Manufacturer: Werner Co.
