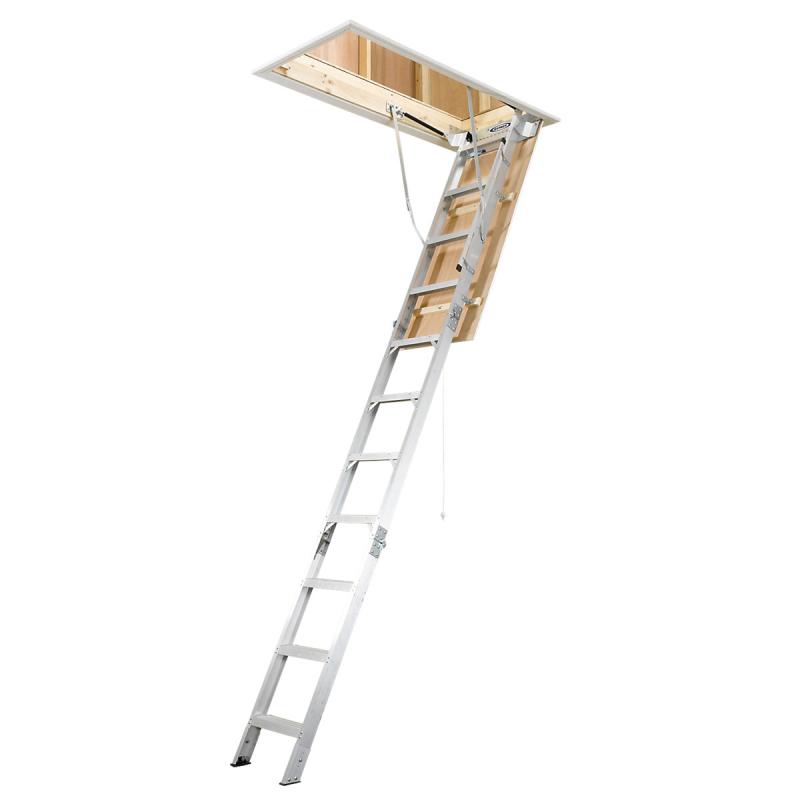

AH2210 22.5" W x 54" L x 8-10' Ceiling Aluminum Attic Ladder

AH2210

Werner Co.

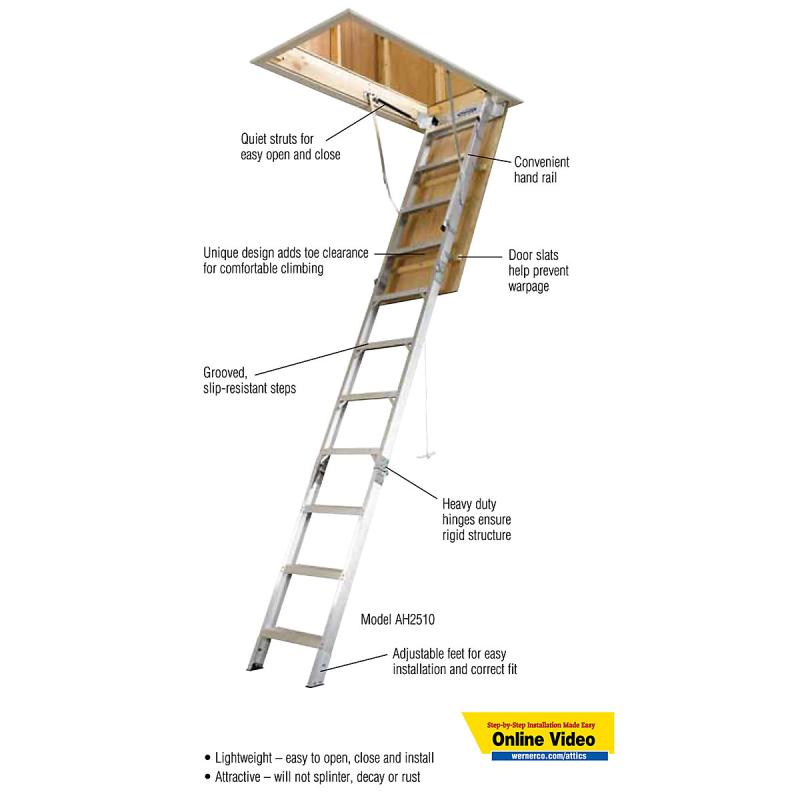

The AH Series Universal attic ladders are lightweight, yet carry a duty rating of 375 pounds. The strut design eliminates springs and allows for a wide access opening. Easy to open and close. Wide steps are slip resistant and the feet are non-marring. Available for standard or extra-wide openings.

(click image to enlarge)
Quick Overview

    Features:
    • Wide access opening
    • Easy to open, smooth closing
    • Slip-resistant steps
    • Non-marring feet
    • Fits all ceiling heights from 8' to 10'
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.
Details
Performance Overview
SizeLoad CapacityMaterial
8'-10'375 lbsAluminum

Specifications
  • Size: 8'-10'
  • Floor to Ceiling Height Range: 7'8" to 10'3"
  • Rough Opening Width x Length: 22-1/2" x 54"
  • Load Capacity: 375 lbs
  • Ladder Width: 14-1/8"
  • Landing Space Range: 4' - 5' 3"
  • Swing Clearance: 5' 10"
  • Foot Material: Aluminum with rubber bottom
  • Locking Device: Gas Strut
  • Opening Device: Rope
  • Door Material: Plywood
  • Frame Material: Pine
  • Full Width Door hinge: Yes
  • Metal-to-Metal Rail hinge: Yes
  • Requires Cutting Foot Angle: No
  • Number of People for Installation: 2
  • Certifications: ANSI A14.9 (2010)
  • Approx. Cu. Ft. Per Unit: 6.78
  • Approx. Shipping Wt. Lbs.: 48.5

Dimensions
  • Rail Size: 1-1/2" x 2-3/8"
  • Flange: 1-1/2"
  • Step Length: 12-1/16"
  • Step Width: 3"

Additional AH Series Models
Model No.SizeFloor to Ceiling Height RangeRough Opening Width x LengthLadder WidthLanding Space Range
AH22108'-10'7'8" to 10'3"22-1/2" x 54"14-1/8"4' - 5' 3"
AH25108'-10'7'8" to 10'3"25" x 54"17-1/8"4' - 5' 3"
AH251212'10'5" to 12'25" x 66"17-1/8"5' 11"
Additional Information
Manufacturer: Werner Co.
