P7406 6' Type IAA Fiberglass Platform Ladder

P7406

Werner Co.

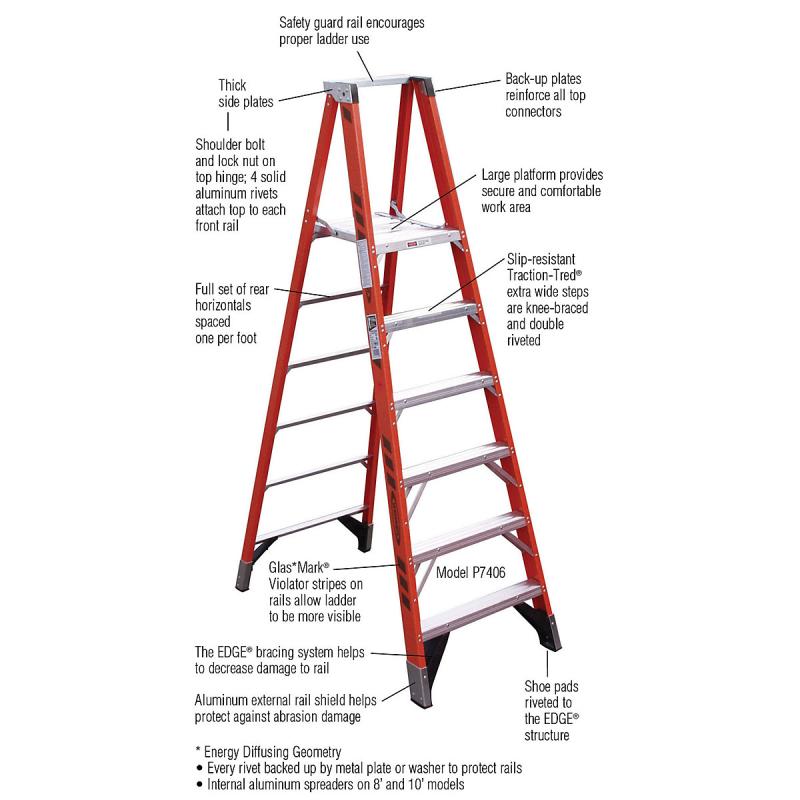

Werner P7400 ladders are rated at 375 pounds and maintain a full set of horizontals on the rear sections. The large work platform provides a secure and comfortable work area while the EDGE® bracing system and external rails shields add to the durability of the product. The safety guard rail at the top of the ladder encourages proper ladder use. Fiberglass rails are non-conductive for working near electricity.
(click image to enlarge)
Quick Overview

    Performance Overview

    StyleSizeReach HeightLoad CapacityType
    Platform 6'12'375 lbs.Type IAA Duty Rating

    Features include:

  • Safety guard rail encourages proper ladder use
  • Back-up plates reinforce all topconnectors
  • Large platform provides secure and comfortable work area
  • Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
  • Full set of rear horizontals spaced one per foot
  • Slip-resistant TRACTION-TRED® extra wide steps are knee-braced and double riveted
  • The EDGE® bracing system helps to decrease damage to rail
  • Glas*Mark® Violator stripes on rails allow ladder to be more visible
  • Aluminum external rail shield helps protect against abrasion damage
  • Slip-resistant foot pads attached to the EDGE® structure
  • Every rivet backed up by metal, metal plates or washers to protect rails
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.
Details

Dimensions

  • Front Rails Dimension: 3-1/8"
  • Front Flange Dimension: 1-3/16"
  • Rear Rails Dimension: 1-7/8"
  • Rear Flange Dimension: 1-3/16"
  • Steps Dimension: 3"
  • Platform Depth: 14-5/8" x 15"
  • Platform Width: 14-5/8" x 15"

    • Specifications

  • Size: 6'
  • Height (Size) to Platform: 6'
  • Rail Length: 8'
  • Reach Height: 12'
  • Max. Standing Height: 5'9"
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 Star
  • Material: Fiberglass
  • Approx. Width: 30-1/2"
  • Approx. Spread: 54-3/8"
  • With Pail Shelf: No
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 9.1
  • Approx. Shipping Wt. Lbs.: 34

    • Additional 400 Series Models:

    Model No.SizeReach HeightMax. Standing HeightLoad CapacityTypeLoad Capacity
    P74033'3'5'9'2'10"375 lbs.
    P74044'4'6'10'3'10"375 lbs.
    P74066'6'8'12'5'9"375 lbs.
    P74088'8'10'14'7'8"375 lbs.
    P741010'10'12'16'9'7"300 lbs.
    P741212'12'14'18'11'6"300 lbs.
    Additional Information
    Manufacturer: Werner Co.
