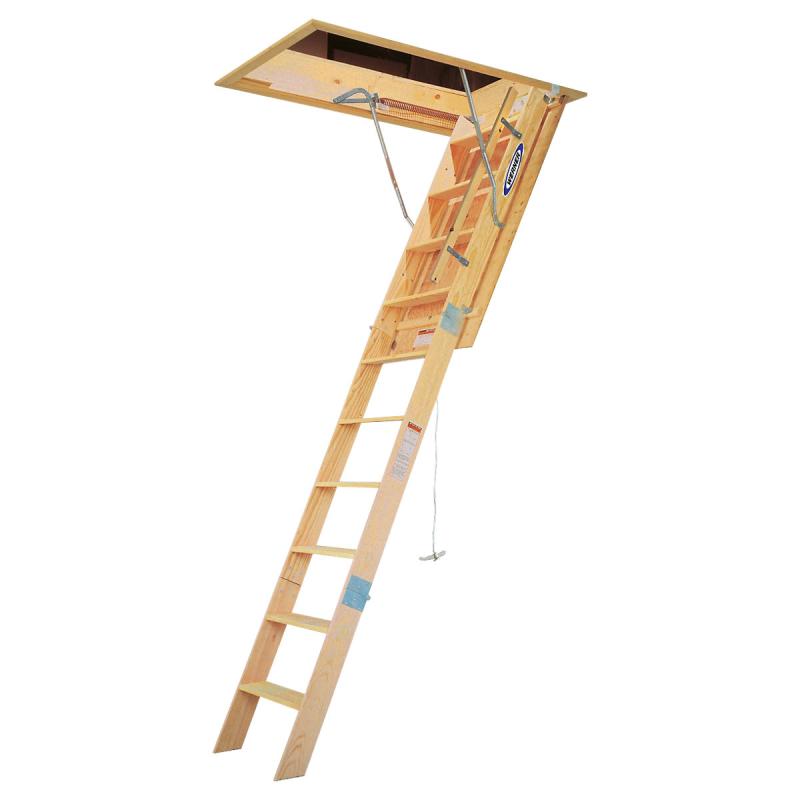

WH2508 25" W x 54" L x 8' Ceiling Heavy Duty Wood Attic Ladder
WH2508
Werner Co.
(click image to enlarge)
Quick Overview

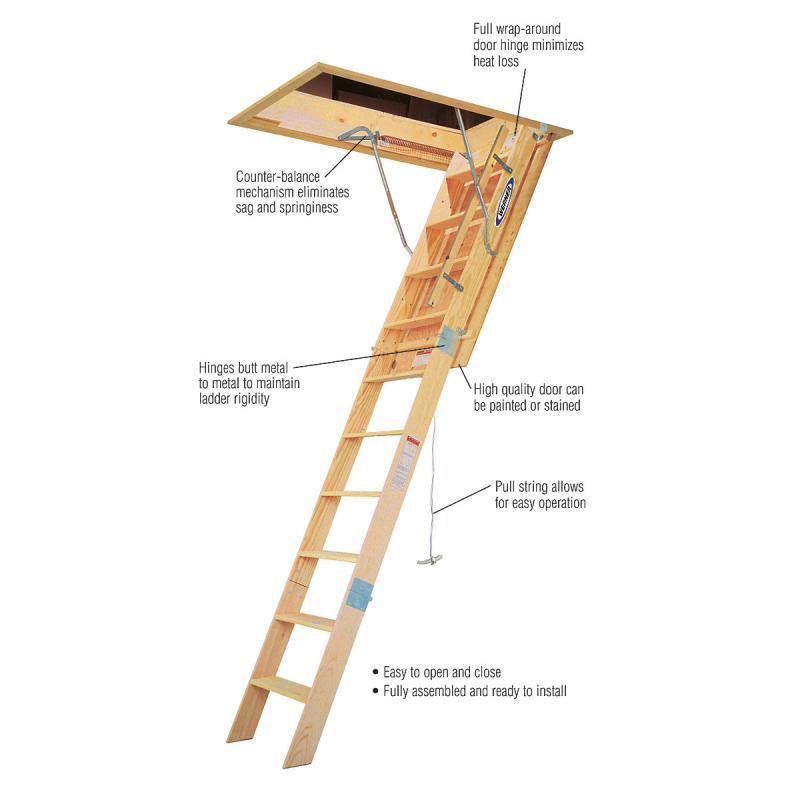

Features:
Counter-balance mechanism eliminates sag and springiness
Full wrap-around door hinge minimizes heat loss
High quality door can be painted or stained
Hinges butt metal to metal to maintain ladder rigidity
Pull string allows for easy operation
Easy to open and close
Fully assembled and ready to install
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email:
Sales@marathontool.com
Can't find what you want? Give us a call and we can help you find it.
Details
Performance Overview
Size
Load Capacity
Material
8'
350 lbs
Wood
Specifications
Size:
8'
Floor to Ceiling Height Range:
7' to 8'9"
Rough Opening Width x Length:
25" x 54"
Load Capacity:
350 lbs
Ladder Width:
16-3/4"
Landing Space Range:
4' 8"
Swing Clearance:
5' 2"
Foot Material:
wood
Locking Device:
Spring
Opening Device:
Rope
Door Material:
Plywood
Frame Material:
Pine
Full Width Door hinge:
Yes
Metal-to-Metal Rail hinge:
Yes
Requires Cutting Foot Angle:
Yes
Number of People for Installation:
2
Certifications:
ANSI A14.9 (2010)
Approx. Cu. Ft. Per Unit:
12
Approx. Shipping Wt. Lbs.:
62.5
Dimensions
Rail Size:
3/4" x 4-1/2"
Step Length:
15-1/4"
Step Width:
4-1/2"
Grooved Steps-Actual Lumber Size:
3/4" x 4-1/2"
Additional WH Series Models
Model No.
Size
Floor to Ceiling Height Range
Rough Opening Width x Length
Ladder Width
Landing Space Range
WH2208
8'
7' to 8'9"
22-1/2" x 54"
14-1/4"
4' 8"
WH2210
10'
8'9" to 10'3"
22-1/2" x 54"
14-1/4"
5' 4"
WH2508
8'
7' to 8'9"
25" x 54"
16-3/4"
4' 8"
WH2510
10'
8'9" to 10'3"
25" x 54"
16-3/4"
5' 4"
WH3008
8'
7' to 8'9"
30-1/2" x 54"
22-1/4"
4' 8"
WH3010
10'
8'9" to 10'3"
30-1/2" x 54"
22-1/4"
5' 4"
Additional Information
Manufacturer: Werner Co.
