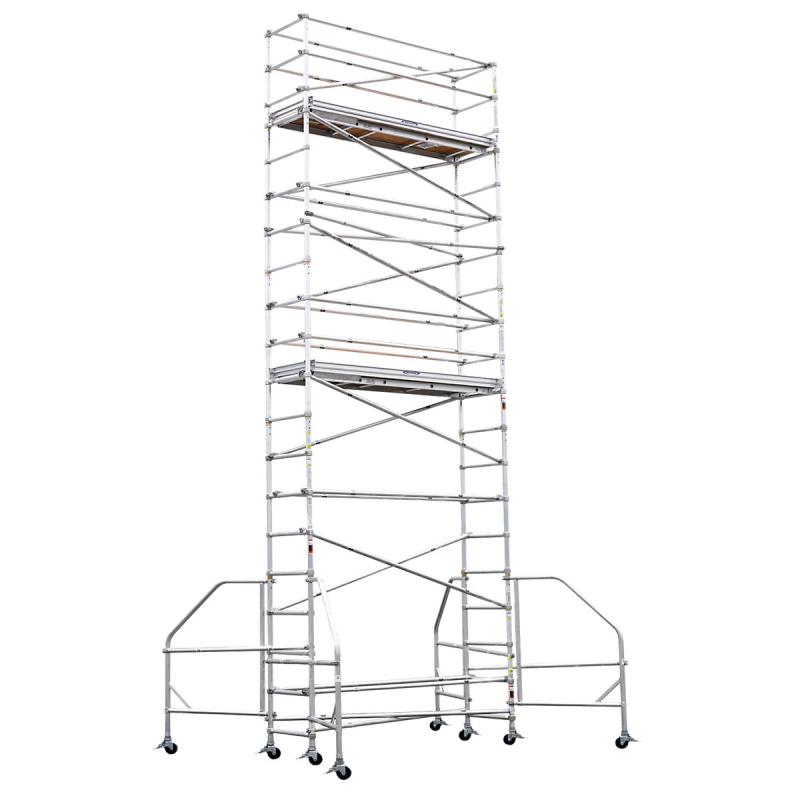

4103-23 Narrow Span 23' H x 10' L Platform Scaffold Tower

4103-23

Werner Co.

The 4100-23 series aluminum scaffold towers offer 6', 8', or 10' length platforms that are 29" wide, and 23' maximum platform height. Load capacity is 25 lbs. per square foot or 500 lbs. maximum per deck and scaffold. Additional Werner scaffold sections and components can be added to the tower for maximum flexibility.

(click image to enlarge)
Quick Overview
  • Feature:
  • Simplified ordering--order one model number and receive everything needed to build a complete tower
  • Takes the guesswork out of what is required to meet code
  • Ideal for schools, hospitals and building maintenance
  • Includes guard rails, toeboards, and planks with access door that allows end users to climb from inside. 23' Towers include additional fixed board (no access door)
  • Outriggers included
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.
Details
Specification:
  • Feature:Size/Details
  • Tower Style:Narrow Span
  • Load Capacity/sq. ft.:25 lbs.
  • Load Capacity/Deck:500 lbs.
  • Load Capacity/Scaffold:500 lbs.
  • Material:Aluminum
  • Certifications:ANSI A10.8 (2001)
  • Approx. Cu. Ft. Per Unit:256.43
  • Approx. Shipping Wt. Lbs.:514.5


    • Dimensions:
  • Feature:Size
  • Platform Height:23'
  • Total Tower Height:26' 4"
  • Platform Width:2'5"
  • Total Width:9' 6"
  • Platform Length:10'
  • Total Length:13' 6"


    • Additional 4100-23 Series Models
    Model No.Approx.Cu.Ft.Per UnitApprox.Shipplng wt.Lbs
    4101-23175.39451.0
    4102-23219.24489.0
    4103-23256.43514.5
    Additional Information
    Manufacturer: Werner Co.
