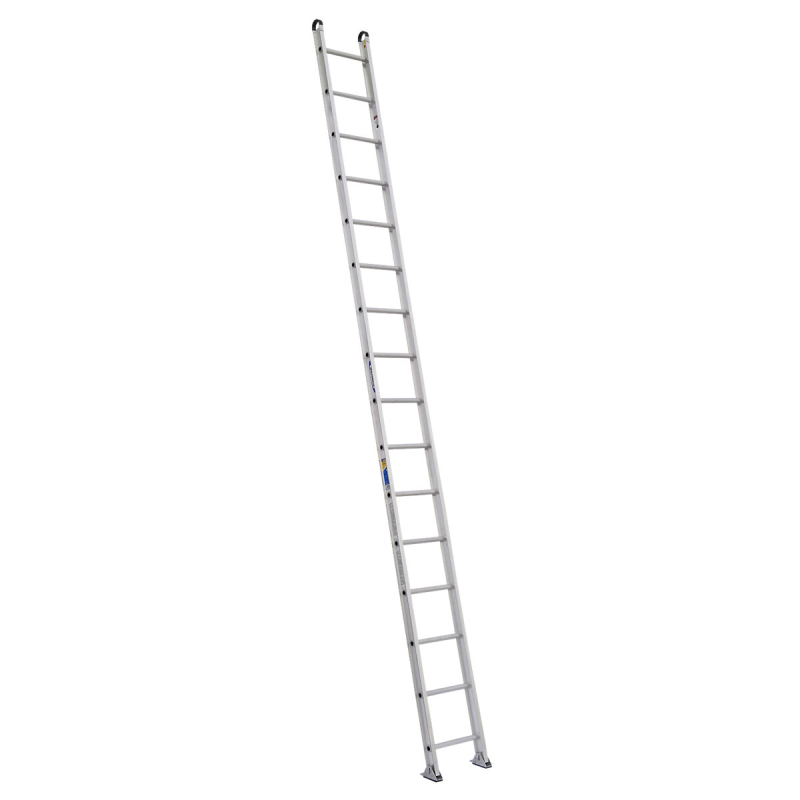

16' Type IAA Aluminum Round Rung Straight Ladder

516-1

Werner Co.

The 500-1 series are one-section round rung straight ladders with a duty rating of 375 pounds.

(click image to enlarge)
Quick Overview

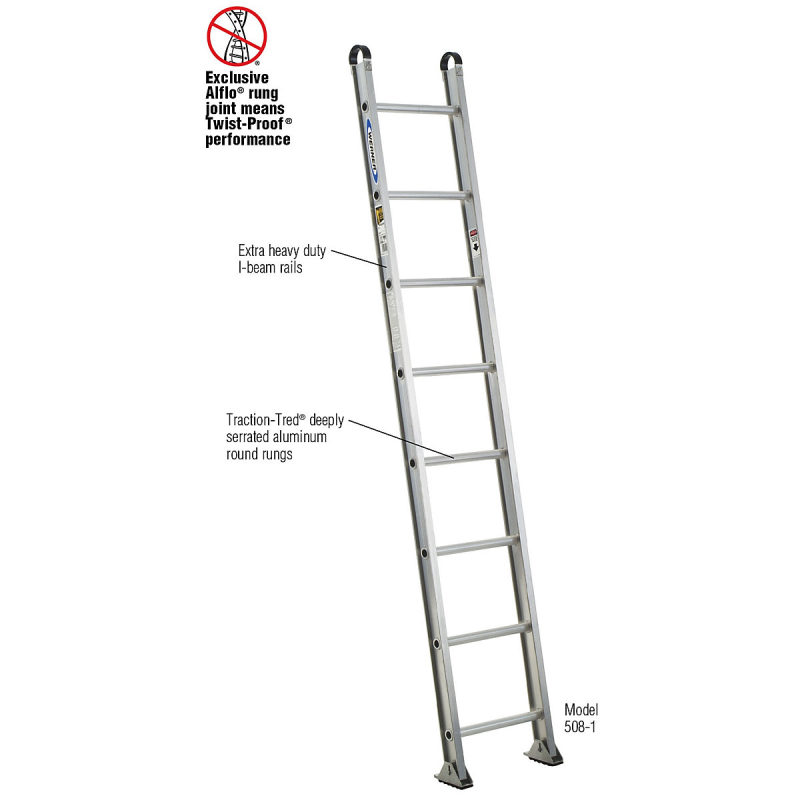

    Features
  • Exclusive ALFLO Rung joint means TWIST-PROOF Performance
  • 1-1/4" Slip-resistant TRACTION-TRED round rungs
  • Extra heavy duty I-beam rails
  • Heavy duty, self-aligning, free-swinging shoe with slip-resistant tread and replaceable steel spur plate
  • Hoop end caps
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.
Details

The 500-1 series are one-section round rung straight ladders with a duty rating of 375 pounds. The exclusive ALFLO rung joint means TWIST-PROOF performance every time. The side rails are extra heavy duty I-beam rails and the aluminum round rungs are deeply serrated for slip resistance. The duty rating goes to 300 pounds with the 18', 20' and 24' lengths.


Specifications
  • Size: 16'
  • Reach Height: 19'
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Material: Aluminum
  • Rung Type: Round
  • Foot Material: Slip-resistant pad
  • Number of Sections: 1
  • Certifications: ANSI A14.2 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 5.7
  • Approx. Shipping Wt. Lbs.: 37

    • Dimensions
  • Rails Dimension: 3"
  • Flange Dimension: 1-1/4"
  • Rung Dimension: 1-1/4"
  • Base Width: 16-7/8"

    • Model No.SizeReach HeightLoad CapacityTypeApprox. Cu. Ft. Per Unit
    508-1 8'11'375 lbs.Type IAA Duty Rating2.9
    510-1 10'13'375 lbs.Type IAA Duty Rating3.6
    512-1 12'15'375 lbs.Type IAA Duty Rating4.3
    514-1 14'17'375 lbs.Type IAA Duty Rating5
    516-1 16'19'375 lbs.Type IAA Duty Rating5.7
    518-1 18'20'300 lbs.Type IA Duty Rating6.4
    520-1 20'22'300 lbs.Type IA Duty Rating7.1
    524-1 24'26'300 lbs.Type IA Duty Rating14
    Additional Information
    Manufacturer: Werner Co.
