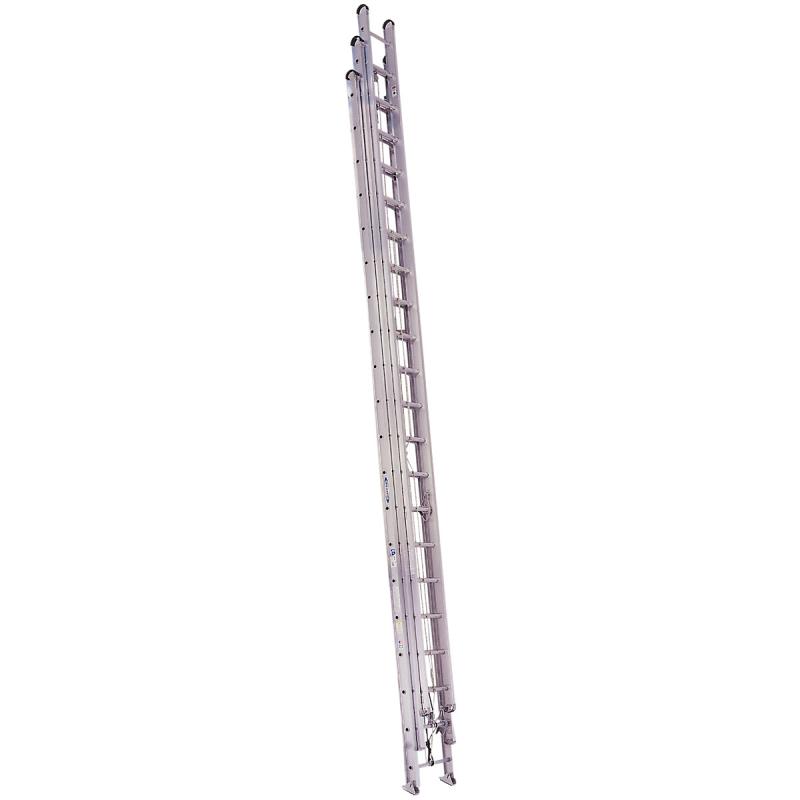

60' Type I Aluminum Round Rung Extension Ladder

560-3

Werner Co.

The model 560-3 is a 3 section aluminum extension ladder that has a duty rating of 250 pounds. The exclusive ALFLO rung joint means TWIST-PROOF performance. The top fly section can be removed and used separately as a single straight ladder. The bottom base section and intermediate section can be used as a 40' extension ladder. Shoes pivot for use on hard or penetrable surfaces. Rugged spring-loaded locks operate smoothly. Heavy duty rope and double pulley system lift fly and intermediate sections. Rugged spring-loaded locks operate smoothly.

(click image to enlarge)
Quick Overview

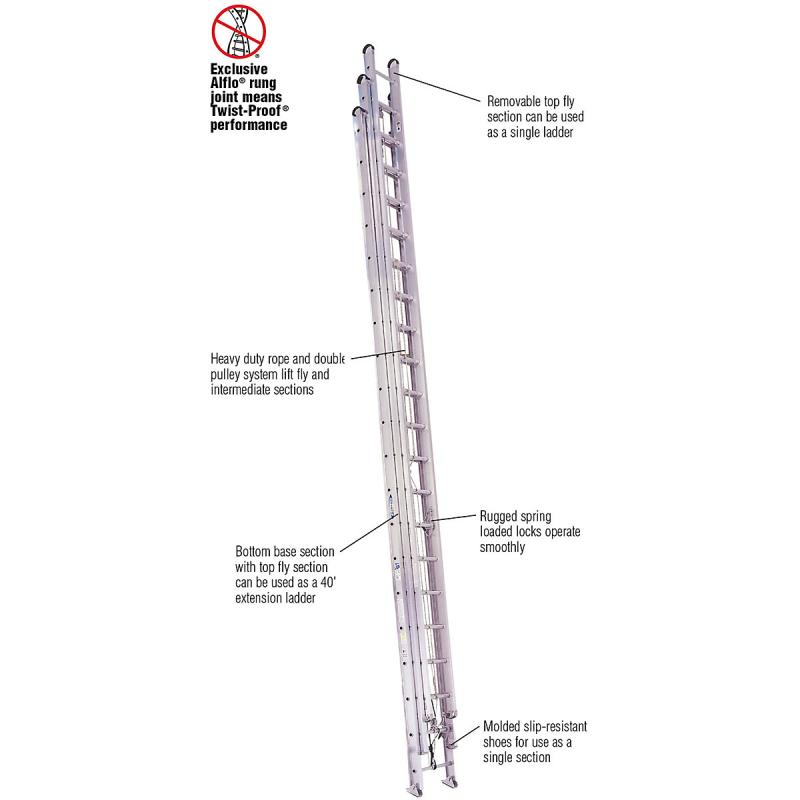

    Features include:

  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-1/4" Slip-resistant Traction-Tred D-rungs
  • Heavy duty rope and double pulley system lift fly and intermediate sections
  • Heavy Duty extruded rung locks are spring loaded to operate smoothly
  • Removable top fly sectionincludes slip-resistant shoes for use as a single ladder
  • Bottom base section with top fly section can be used as a 40' extension ladder
  • Internal guides increase ease of operation
  • Extra heavy duty I-beam rails
  • Heavy duty, self-aligning, free-swinging shoe with slip-resistant tread and replaceable steel spur plate
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.
Details

Dimensions

  • Rails Dimension: 4"
  • Flange Dimension: 2" (base & intermediate sections) 1-3/8" (top fly section)
  • Rung Dimension: 1-1/4"
  • Base Width: 23-1/2"

    • Specifications

  • Size: 60'
  • Reach Height: 49'
  • Max Working Length: 47'
  • Load Capacity: 250 lbs.
  • Type: Type I Duty Rating
  • Performance Rating: 3 Star
  • Material: Aluminum
  • Rung Type: Round
  • Foot Material: Slip-resistant pad
  • Number of Sections: 3
  • Certifications: ANSI A14.2 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 26.8
  • Approx. Shipping Wt. Lbs.: 179
    • Additional Information
    Manufacturer: Werner Co.
