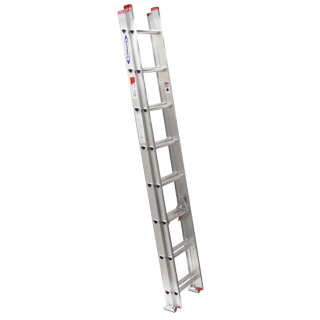

16' Type III Aluminum D-Rung Extension Ladder

D1116-2

Werner Co.

The D1100-2 series aluminum extension ladders are lightweight yet have a duty rating of 200 pounds. The Traction-Tred D rungs are slip resistant. Spring-loaded locks operate smoothly for easy operation. Pivoting shoes with slip-resistant foot pads. Mar-resistant end caps help protect the surface ladder is leaning against. Exclusive ALFLO rung joint means TWIST-PROOF performance every time.

(click image to enlarge)
Quick Overview

    Features include:

  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-1/2" Slip-resistant Traction-Tred D-rungs
  • Durable extruded rung locks are spring loaded to operate smoothly
  • Mar-resistant end caps
  • Modified I-beam side rails to optimize strength and weight
  • Pivoting shoe with slip-resistant pad
  • Pivoting shoe with slip-resistant pad
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.
Details

Dimensions

  • Rails Dimension: 2-3/4"
  • Flange Dimension: 15/16"
  • Rung Dimension: 1-1/2"
  • Fly Width: 14-1/8"
  • Base Width: 16" outside rails

    • Specifications

  • Size: 16'
  • Reach Height: 15'
  • Max Working Length: 13'
  • Load Capacity: 200 lbs.
  • Type: Type III Duty Rating
  • Performance Rating: 1 Star
  • Material: Aluminum
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.2 (2007)
  • Approx. Cu. Ft. Per Unit: 4.9
  • Approx. Shipping Wt. Lbs.: 18.5

    • Additional D1100-2 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D1116-216'15'13'4.918.5
    D1120-220'19'17'6.223
    D1124-224'23'21'7.430
    D1128-228'27'25'938.5
    Additional Information
    Manufacturer: Werner Co.
