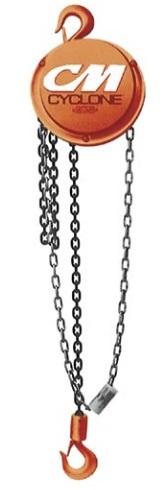

Cyclone CM Manual Chain Hoists

Lift-All

(click image to enlarge)

SKU / Product Info	Quantity
10CHX10 10
112CHX10 1 1/2
12CHX10 1/2
14CHX10 1/4
1CHX10 1
2CHX10 2
3CHX10 3
4CHX10 4
5CHX10 5
6CHX10 6
8CHX10 8

Quick Overview

Product Features :

Cyclone hoists are the premium grade manual chain hoists.
Built for heavy duty use, these hoists are most often placed for permanent installation using the standard hook or mounting directly to a low headroom, plain or geared trolley.
Cast aluminum body for strength.
Load Limiter - prevents hoist damage from excessive loads.
Lifetime warranty against defects in workmanship and materials.

Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications :

Part No.	Std.Lengths(ft.)	Max.Cap.(tons)	StrandsofLoadChain	Hand Chain		A (in.)	B (in.)	C (in.)	T (in.)	10Ft.NetWt.(lbs.)
Part No.	Std.Lengths(ft.)	Max.Cap.(tons)	StrandsofLoadChain	Pull(lbs.)	Overhaul(ft.)	A (in.)	B (in.)	C (in.)	T (in.)	10Ft.NetWt.(lbs.)
Cyclone
14CHX10	10	1/4	1	23	22 1/2	12 7/8	10 7/8	7 3/8	1 11/32	40
12CHX10	10	1/2	1	46	22 1/2	12 7/8	10 7/8	7 3/8	1 11/32	40
1CHX10	10	1	1	69	30	14	10 7/8	7 3/8	1 1/8	43
112CHX10	10	1 1/2	1	80	40 1/2	175 1/6	10 7/8	9 7/8	1 5/16	70
2CHX10	10	2	1	83	52	17 5/16	10 7/8	9 7/8	1 5/16	70
3CHX10	10	3	2	85	81	21 1/2	12 1/4	9 7/8	1 5/8	103
4CHX10	10	4	2	88	104	21 1/2	12 1/4	9 7/8	1 5/8	103
5CHX10	10	5	3	75	156	24 1/2	14 1/2	9 7/8	1 5/8	138
6CHX10	10	6	3	90	156	25 1/2	14 1/2	9 7/8	1 3/4	142
8CHX10	10	8	4	89	208	35 1/2	17 1/2	9 7/8	2 5/16	248
10CHX10	10	10	5	95	260	35 1/2	17 1/2	9 7/8	2 5/16	251
Series 622
12CHIX_	10,15,20,30	1/2	1	45	32	10	4 11/16	4 3/16	3/4	18
1CHIX_	10,15,20,30	1	1	74	39	12	5 19/32	5 3/16	7/8	26
2CHIX_	10,15,20,30	2	1	70	77	17	8 5/16	6 19/32	1 1/16	61
3CHIX_	10,20	3	2	54	154	22	8 5/16	6 19/32	1 1/4	89
5CHIX_	10,20	5	2	88	154	24	8 5/16	6 19/32	1 11/16	91
10CHIX_	10	10	4	90	308	32	14 13/16	6 19/32	2 3/16	170

View Product Details

Additional Information

Manufacturer: Lift-All

For More Information on the Cyclone CM Manual Chain Hoists, [Click Here] to Link to Manufacturer Web Site
