Fixed Aluminum - HA90 Gantry Cranes

Lift-All

(click image to enlarge)

SKU / Product Info	Quantity
HA90-1-10/11 297 Lbs.
HA90-1-10/6 258 Lbs.
HA90-1-10/9 284 Lbs.
HA90-1-7/11 251 Lbs.
HA90-1-7/6 212 Lbs.
HA90-1-7/9 238 Lbs.
HA90-1-9/11 273 Lbs.
HA90-1-9/6 234 Lbs.
HA90-1-9/9 260 Lbs.
HA90-2-10/10 479 Lbs.
HA90-2-10/6 401 Lbs.
HA90-2-10/8 458 Lbs.
HA90-2-7/10 429 Lbs.
HA90-2-7/6 351 Lbs.
HA90-2-7/8 408 Lbs.
HA90-2-9/10 449 Lbs.
HA90-2-9/6 371 Lbs.
HA90-2-9/8 428 Lbs.

Quick Overview

Product Features :

Light-weight Aluminum construction.
Balanced design allows for easy rolling, even under load.
Simple bolt together construction.
Includes 4 poly-coated swivel casters.
Easy set-up and maintenance.

Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications :

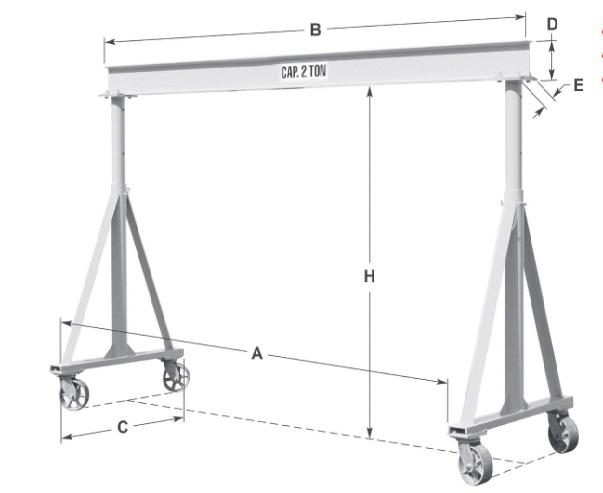

Rated Cap. (Tons)	Height Under Beam (H)	Nominal Span (Ft.)	A	B	C	D (in.)	E (in.)	Caster Diameter (in.)	Weight (Lbs.)	Model No.
1	7'6"	6	6'10"	8'4"	4'	6	3.33	6	212	HA90-1-7/6
		9	9'	10'6"	4'	8	4	6	238	HA90-1-7/9
		11	11'	12'6"	4'	8	4	6	251	HA90-1-7/11
	9'2"	6	6'10"	8'4"	5'	6	3.33	6	234	HA90-1-9/6
		9	9'	10'6"	5'	8	4	6	260	HA90-1-9/9
		11	11'	12'6"	5'	8	4	6	273	HA90-1-9/11
	10'10"	6	6'10"	8'4"	6'	6	3.33	6	258	HA90-1-10/6
		9	9'	10'6"	6'	8	4	6	284	HA90-1-10/9
		11	11'	12'6"	6'	8	4	6	297	HA90-1-10/11
2	7'6"	6	6'4"	8'4"	4'	8	4	8	351	HA90-2-7/6
		8	8'6"	10'6"	4'	10	4.66	8	408	HA90-2-7/8
		10	10'6"	12'6"	4'	10	4.66	8	429	HA90-2-7/10
	9'2"	6	6'4"	8'4"	5'	8	4	8	371	HA90-2-9/6
		8	8'6"	10'6"	5'	10	4.66	8	428	HA90-2-9/8
		10	10'6"	12'6"	5'	10	4.66	8	449	HA90-2-9/10
	10'10"	6	6'4"	8'4"	6'	8	4	8	401	HA90-2-10/6
		8	8'6"	10'6"	6'	10	4.66	8	458	HA90-2-10/8
		10	10'6"	12'6"	6'	10	4.66	8	479	HA90-2-10/10

View Product Details

Additional Information

Manufacturer: Lift-All

For More Information on the Fixed Aluminum - HA90 Gantry Cranes, [Click Here] to Link to Manufacturer Web Site
