Home / Categories / Material Handling | Storage | Containment / Hoists and Trolleys / Electric Hoists /

Search:

Fixed Spreader Beam - FSB30

Lift-All

(click image to enlarge)

SKU / Product Info	Quantity
FSB10x10 10 Feet
FSB10x12 12 Feet
FSB10x16 16 Feet
FSB10x20 20 Feet
FSB10x24 24 Feet
FSB10x4 4 Feet
FSB10x6 6 Feet
FSB10x8 8 Feet
FSB20x10 10 Feet
FSB20x12 12 Feet
FSB20x16 16 Feet
FSB20x20 20 Feet
FSB20x24 24 Feet
FSB20x4 4 Feet
FSB20x6 6 Feet
FSB20x8 8 Feet
FSB4x10 10 Feet
FSB4x12 12 Feet
FSB4x16 16 Feet
FSB4x20 20 Feet
FSB4x24 24 Feet
FSB4x4 4 Feet
FSB4x6 6 Feet
FSB4x8 8 Feet

Quick Overview

Product Features :

Adds stability to lift where headroom is not limited.
Chain rigging standard, wire rope rigging available.

Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications :

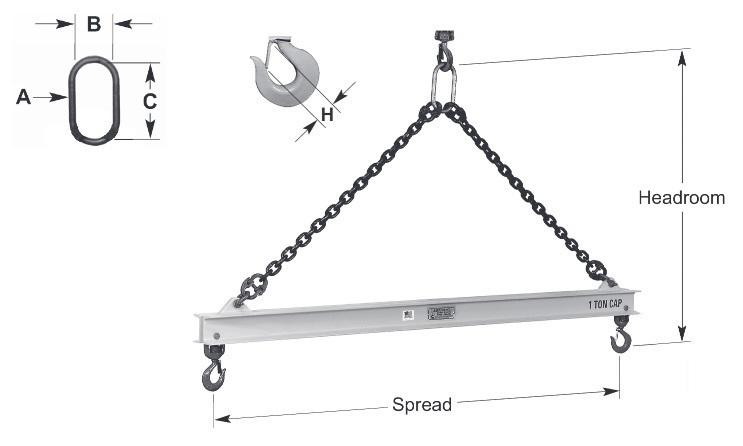

Rated Cap. (Tons)	Part No.	Spread(Ft.)	Bail/Hook Dimensions A-B-C-H (in.)	Headroom (in.)	Weight (lbs.)
Rated Cap. (Tons)	Part No.	Spread(Ft.)	Bail/Hook Dimensions A-B-C-H (in.)	Headroom (in.)	With Chain	With Wire Rope
2	FSB4x4	4		34	55	59
	FSB4x6	6	A - .5	46	72	75
	FSB4x8	8	B - 2.5	58	96	98
	FSB4x10	10	C - 5.0	70	111	112
	FSB4x12	12	H - .97	82	133	133
	FSB4x16	16		106	283	265
	FSB4x20	20		132	474	450
	FSB4x24	24		156	519	486
5	FSB10x4	4		37	115	134
	FSB10x6	6	A - 1.0	49	135	153
	FSB10x8	8	B - 3.5	61	161	178
	FSB10x10	10	C - 7.0	73	182	198
	FSB10x12	12	H - 1.06	83	237	251
	FSB10x16	16		110	407	394
	FSB10x20	20		134	551	534
	FSB10x24	24		158	791	761
10	FSB20x4	4		41	188	231
	FSB20x6	6	A - 1.25	53	222	258
	FSB20x8	8	B - 4.38	64	266	297
	FSB20x10	10	C - 8.75	77	302	327
	FSB20x12	12	H - 1.5	86	371	391
	FSB20x16	16		113	533	543
	FSB20x20	20		138	706	705
	FSB20x24	24		163	1110	1098

View Product Details

Additional Information

Manufacturer: Lift-All

For More Information on the Fixed Spreader Beam - FSB30, [Click Here] to Link to Manufacturer Web Site
