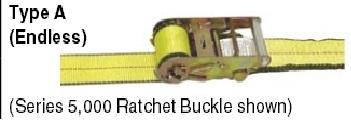

Load Hugger 10000 Series Polyester Standard Ratchet Assemblies, Type A-Endless

Lift-All

(click image to enlarge)
SKU / Product InfoQuantity
61011
27'
61012
30'

Quick Overview

    Product Features :

      • Two piece assemblies with one fixed length of webbing and one adjustable length ofwebbing.
      • Numerous end fittings are available to handle any requirements.
      • 2" wide polyester webbing.
      • Ultimate strength - 10,000 lbs.
      • Working Load Limit - 3,300 lbs.
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.
Details

Specifications :

Webbing
Ultimate Strength (lbs.)
Working Load Limit (lbs.)		LengthSeries 5,000
2" Wide Polyester
5,000 lbs
1600 lbs		Series 10,000
2" Wide Polyester
10,000 lbs
3300 lbs
StandardPart No.Tuff-EdgePart No.Weight(lbs.)StandardPart No.Tuff-EdgePart No.Weight(lbs.)
Flat Hook27'60501TE605014.661001TE610015.8
30'60502TE605024.861002TE610026.0
Stamped Triangle27'60503TE605034.261003TE610035.2
3060504TE605044.461004TE610045.4
Stamped Snap Hook27'60505TE605054.661005TE610056.2
3060506TE605064.861006TE610066.4
Twisted SnapHook27'60507TE605075.261007TE610075.6
3060508TE605085.461008TE610085.8
Forged Snap Hook27'60509TE605095.861009TE610096.4
3060510TE605106.061010TE610106.6
D-Ring27'60511TE605114.2
3060512TE605124.4
U-Hook27'60513TE605134.626422TE264225.8
3060514TE605144.826423TE264236.0
Hook & Keeper27'60515TE605154.8
3060516TE605165.0
Chain Anchor27'   61013TE6101313.0
30   61014TE6101413.2
Type A (Endless)27'60517TE605173.861011TE610114.4
3060518TE60518461012TE610124.6

View Product Details
Additional Information
Manufacturer: Lift-All
For More Information on the Load Hugger 10000 Series Polyester Standard Ratchet Assemblies, Type A-Endless, [Click Here] to Link to Manufacturer Web Site
