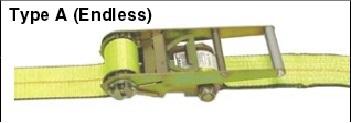

Load Hugger Series 15000 3" Wide Polyester Tuff-Edge Ratchet Assemblies, Type A-Endless

Lift-All

(click image to enlarge)
SKU / Product InfoQuantity
TE20492
27'
TE20493
30'

Quick Overview

    Product Features :

      • Two piece assemblies with one fixed length of webbing and one adjustable length ofwebbing.
      • Numerous end fittings are available to handle any requirements.
      • 3" or 4" wide polyester webbing.
      • Ultimate strength - 15,000 lbs.
      • Working Load Limit - 5,000 lbs.
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.
Details

Specifications :

Webbing
Ultimate Strength (lbs.)
Working Load Limit (lbs.)		LengthSeries 15,000
3" Wide Polyester
15,000 lbs
5000 lbs		Series 15,000
4" Wide Polyester
15,000 lbs
5000 lbs
StandardPart No.Tuff-EdgePart No.Weight(lbs.)StandardPart No.Tuff-EdgePart No.Weight(lbs.)
Flat Hook27'20482TE2048212.826424TE2642413.6
30'20483TE2048313.226425TE2642514.0
Forged Triangle27'20484TE2048414.026430TE2643014.8
30'20485TE2048514.426431TE2643115.2
Chain Grab Hook27'20486TE2048613.426426TE2642614.2
30'20487TE2048713.826427TE2642714.6
Chain Anchor Assembly27'20488TE2048816.826432TE2643217.6
30'20489TE2048917.226433TE2643318.0
U-Hook27'20494TE2049413.026436TE2643613.8
30'20495TE2049513.226437TE2643714.2
Sewn Eye27'20490TE2049011.026428TE2642811.8
30'20491TE2049111.426429TE2642912.2
Type A (Endless)27'20492TE2049210.626434TE2643411.4
30'20493TE2049311.026435TE2643511.8

View Product Details
Additional Information
Manufacturer: Lift-All
For More Information on the Load Hugger Series 15000 3" Wide Polyester Tuff-Edge Ratchet Assemblies, Type A-Endless, [Click Here] to Link to Manufacturer Web Site
