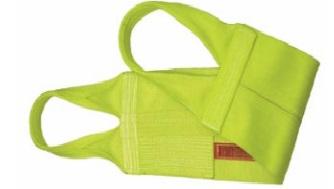

One Ply Continuous Eye Wide-Lift Slings

Lift-All

(click image to enlarge)

SKU / Product Info	Quantity
WL1806N Body Width - 6 inch
WL1808N Body Width - 8 inch
WL1812N Body Width - 12 inch
WL1816N Body Width - 16 inch
WL1820N Body Width - 20 inch
WL1824N Body Width - 24 inch
WL1830N Body Width - 30 inch
WL1836N Body Width - 36 inch

Quick Overview

Product Features :

Red Core Yarn warning system aids in the inspectionprocess.
Tuff-Tagprovides serial numbered identification fortraceability.
Proven sling web construction.
Wide bearing area reduces marring of soft loadsurfaces.
Yellow treatment for abrasion resistance andextended sling life.
Tuff-Tagprovides required OSHA information for thelife of the sling, not just the life of the tag.

Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email: Sales@marathontool.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications :

	Body Width(in.)	Part No.	Rated Capacity (lbs.) Vertical Basket	Eye Length(in.)	Minimum Sling Length(in.)
One Ply	6	WL1806N	15400	9	40
	8	WL1808N	20400	12	45
	12	WL1812N	30800	18	60
	16	WL1816N	38000	24	72
	20	WL1820N	45000	30	88
	24	WL1824N	52000	36	100
	30	WL1830N	45000	45	120
	36	WL1836N	45000	54	144
Two Ply	6	WL2806N	28600	9	40
	8	WL2808N	38000	12	45
	12	WL2812N	57200	18	60
	16	WL2816N	75000	24	72
	20	WL2820N	90000	30	88
	24	WL2824N	110000	36	100
	30	WL2830N	90000	45	120
	36	WL2836N	90000	54	144

Wide Load Support and Balance
Lift-AllWide-Lift slings support the load over a wide areato offer better balance for large loads - whether heavyor light. Wide bearing area reduces marring of soft loadsurfaces. Stiffeners are used at the base of the eyes todeter the body webbing from folding down the middle.Wide-Lift slings are for use in basket hitch only.Standard web material isWebmaster1600 nylon.Polyester is available upon request.

Attached Eye Wide-Lift
For Light, Bulky Loads- Lifting eyes are attached to a singleply sling body. Available with One Ply eyes (WLA1) or TwoPly eyes (WLA2).

Continuous Eye Wide-Lift
For Heavy Loads- Constructed from one endless slingwith the two body lengths butted and joined side by side.

View Product Details

Additional Information

Manufacturer: Lift-All

For More Information on the One Ply Continuous Eye Wide-Lift Slings, [Click Here] to Link to Manufacturer Web Site
