Details

Specifications :-

Body Material: Glass Filled Nylon

Number of Drill Guides: 2

Drill Guide Spacings: 7/8"

Clamping Method Works with a wide variety of clamps Face Clamp™ for Clamp Pad Adapter

Screw Centering Ability: 1/2", 5/8", 3/4", 7.8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2"

Warranty: Lifetime Drill Guide Warranty

Detailed Information :-

Perfect for repairs or building on-the-go!
The Kreg Jig R3 is an amazing repair jig and an exceptionally handy addition to any tool collection. Whether you’re crawling under a table to make a quick repair or taking Kreg Joinery™ on the road, the R3’s small design lets you work where you need to most.

Clamp Pad Adapter

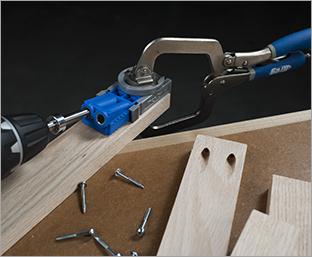

The Kreg Jig R3. can be secured to the workpiece with any standard bar clamp or c-clamp. In addition, the R3’s Clamp Pad Adapter allows the jig to be attached directly to any Kreg Face Clamp™ for faster and more repeatable Pocket-Holes.

Material Thickness Setting
From thin drawer boxes and craft projects to stout 2x4’s, this jig can handle them all. Independent Easy-Press™ Positioning Sliders feature 9 separate depth settings, allowing you to easily join materials from 1/2” to 1-1/2” thick in 1/8” increments.

Organized Carrying Case
Comes with a durable plastic carrying case to keep things organized and to make sure that you always have the tool, drill bit, and screws on hand to complete your next project. As a bonus, we’ve molded a Depth Collar Gauge into the case for a handy reference.

Easy-Press™ Positioning Sliders
To set the jig properly, simply depress the button on the side of the jig and move the sliders so your material thickness is aligned with the arrow on the jig body. It’s that easy.

Glass-Reinforced Nylon Body
The blue body of the Kreg Jig is actually made from a heavy-duty glass-reinforced nylon. This unique composite material offers the resiliency and flexibility you need without sacrificing the strength and durability Kreg customers have come to expect.

Superior Angle
Unlike competing jigs with a shallower angle of approach, the Kreg Jig R3 features an optimized drilling angle specifically designed to increase driving efficiency and minimize the overall size of the Pocket-Hole. The result is a compact Pocket-Hole, less than 1-1/2” in size.

Wood-Chip Relief
Sometimes the simplest things are the easiest to overlook. The Kreg Jig R3 includes 1 wood-chip relief hole for every Drill Guide hole, designed to keep the drill bit clear of excess wood chips, minimizing drill torque, increasing the longevity of your drill bits, and allowing you to complete a perfect Pocket-Hole in one plunge instead of three!

Hardened Steel Core
Drill Guides are subject to direct contact with the drill bit every time a Pocket-Hole is created. The core of every Kreg Jig R3 features hardened steel which carries an exclusive 100% Lifetime Guarantee. The Kreg Jig R3’s core shrouds the bit and supports the workpiece through 100% of the drill-stroke. The end result is minimal bit deflection, reduced tear-out, and a clean, pluggable Pocket-Hole fit for finish work.

Kit Includes
Includes Kreg Jig R3, Clamp Pad Adapter, Stepped Drill Bit, 6” Driver Bit, Depth Collar, Allen Wrench, Starter Screw Set, all inside of a compact and durable carrying case.

Additional Information

Manufacturer: Kreg Tool
