DH40FR 1-9/16 Inch Spline Shank Rotary Hammer, 2-Mode, EVS
DH40FR
Metabo - Hitachi

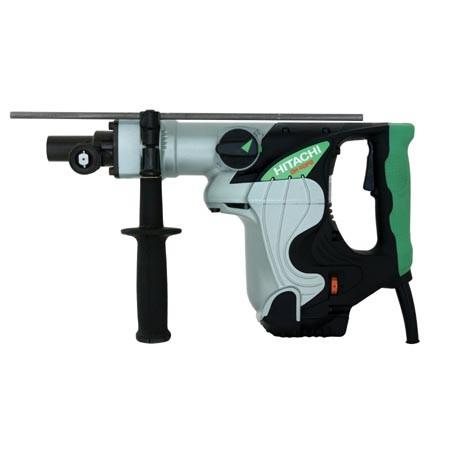

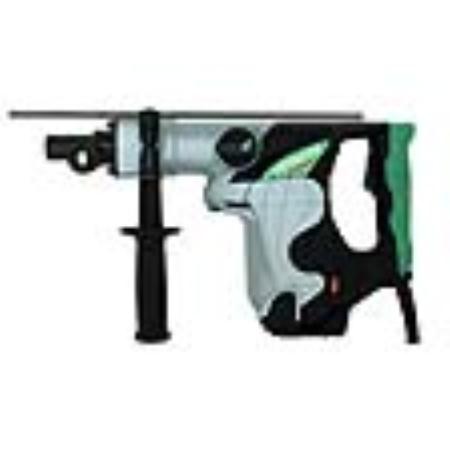

Hitachi DH40FR 1-9/16 Inch Spline Shank Rotary Hammer, 2-Mode, EVS
(click image to enlarge)
Quick Overview
7.4 ft-lbs of impact energy
delivering high-speed drilling and forcible chipping with low vibration and noise level
9.2 Amp motor
increases productivity
2 modes of operation
, hammer & drill and hammer only for flexibility within a range of applications
Built-in electronic control circuit
keeps speed constant even as load varies
Needle-pin slip clutch
for higher slip torque accuracy and safety
Soft, non-slip elastomer grip
absorbs vibration and improves comfort and handling
Revolutionary IDI (Internal Double Insulation) Technology
incorporated into the housing of the tool greatly improves reliability and extends the tool life
Removable side handle with depth gauge
improves control and ensures accurate drilling depth
Download the
DH40FR Tool Card
Includes:
Depth Gauge (971786)
Side Handle (313078)
Injection Molded Carrying Case (322152)
Dust Cover (993245)
Hex Wrenches (944458, 943277, 944459)
1 oz. Tube Hammer Grease (981840)
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email:
Sales@marathontool.com
Can't find what you want? Give us a call and we can help you find it.
Details
Tool Length
16-15/16"
Tool Weight
14.3 lbs
IDI Technology
Yes
Shank
Spline
Chuck Size
1-9/16"
No-Load Speed
240-480 rpm
Impact Rate
1,320-2,650 bpm
Impact Energy
7.4 ft-lbs
Amps
9.2
Capacity: Drill Bit
1-9/16"
Capacity: Core Bit
4-1/8"
Modes of Operation
Hammer/Hammer & Drill
Switch
EVS
Handle Type
D
Power Input
950W
Additional Information
Manufacturer: Metabo - Hitachi
For More Information on the DH40FR 1-9/16 Inch Spline Shank Rotary Hammer, 2-Mode, EVS,
[Click Here]
to Link to Manufacturer Web Site
