DH38YE2 1-1/2 Inch Spline Shank Rotary Hammer, 2 Mode
DH38YE2
Metabo - Hitachi

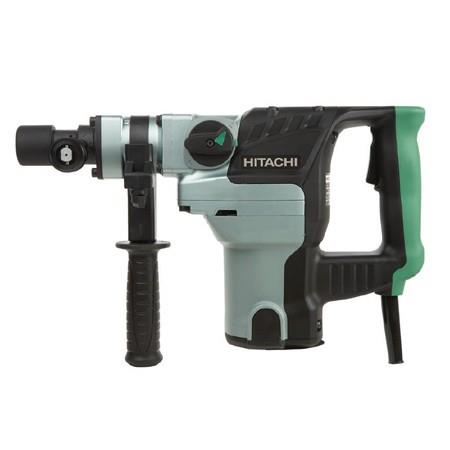

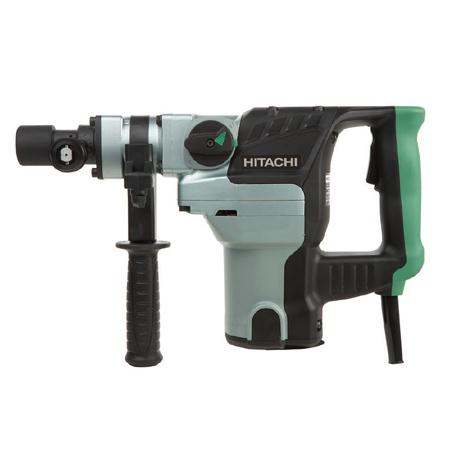

Hitachi DH38YE2 1-1/2 Inch Spline Shank Rotary Hammer, 2 Mode
(click image to enlarge)
Quick Overview
Features
more power, lighter weight, less vibration and lower noise than its well known predecessor
Powerful 8.4 Amp motor
delivers 950 watts of input power for maximum productivity
Produces 5.9 ft/lbs of impact energy
for faster drilling and chiseling through concrete
Two modes of operation
- hammer only and hammer drilling controlled by the simple turn of a knob
Low vibration
levels of only 18.8m/s2 (full load) for more comfortable operation in hand
Low noise
levels of only 95.2 dB (full load) for a less noisy work environment
Safety clutch
shuts down rotation in the event of a bound bit for improved user protection
Dust resistant cover
protects the tool from dust and debris and prolongs tool life
Auto-stop carbon brushes
prevent motor damage and are accessible for simple maintenance checks
Sealed grease system
adds to the tools maintenance free operation
Soft elastomer handle
provides a secure grip and absorbs vibration for comfort and control during operation
Adjustable 360 degree side handle
provides better control and can be removed easily
Download the
DH38YE2 Tool Card
Includes:
Side Handle (330209)
Dust Cover (993245)
Depth Stopper (971786)
Case (331965)
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email:
Sales@marathontool.com
Can't find what you want? Give us a call and we can help you find it.
Details
Shank
Spline
Chuck Size
1-1/2"
Full-Load Speed
510 RPM
Full-Load Impact
2,800 BPM
Impact Energy
5.9 ft/lbs
Amps
8.4
Watts
950
Capacity: Solid Bit
1-1/2"
Capacity: Core Bit
4-1/8"
No-Load Vibration Level
4.8 m/s2
Full-Load Vibration
18.8 m/s2
No-Load Noise Level
84.5 dB
Full-Load Noise Level
95.2 dB
Modes
Hammer Only/ Hammer-Drill
Length
16-11/32"
Weight
14.1 lbs
Additional Information
Manufacturer: Metabo - Hitachi
For More Information on the DH38YE2 1-1/2 Inch Spline Shank Rotary Hammer, 2 Mode,
[Click Here]
to Link to Manufacturer Web Site
