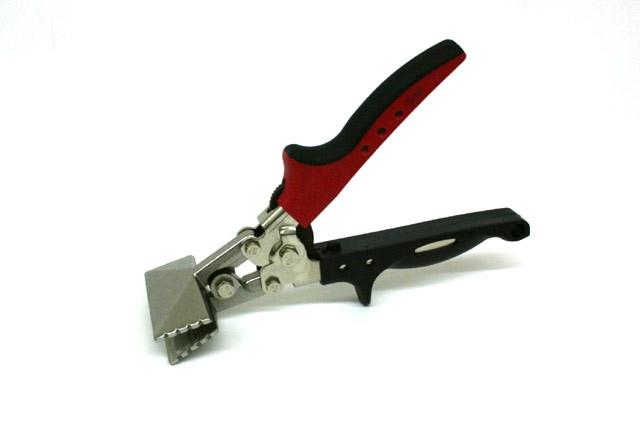

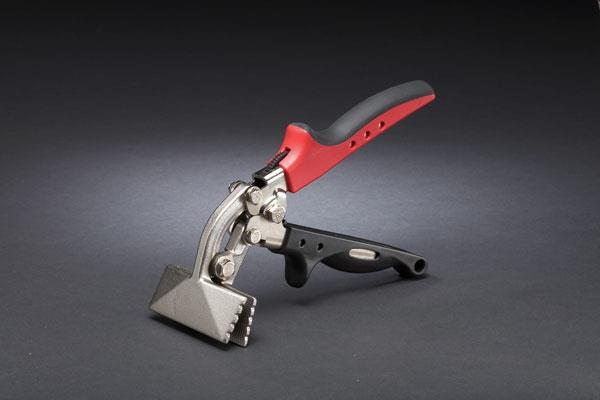

Offset Hand Seamer with Forged Jaws
S3R
Malco
Malco Hand Seamers, with forged steel jaws, are the premier choice for bending, folding, flattening and straightening sheet metal edges or safely gripping and moving sheet metal around the job site. These seamers are available in 3 inch (76.2 mm) and 6 inch (152.4 mm) jaw widths as well as an offset 3 inch (76.2 mm) size for overhead work. The drop-forged, high-impact jaws feature depth markings graduated in 1/4 inch (6.35 mm) increments and are complimented by a powerful compound leverage design. Easily bend flanges or completely flatten seams from 1/4 to 1-1/4 inch (6.35-31.75 mm) deep in 24 gauge (0.71 mm) galvanized or (0.61 mm) mild steel. Malco’s Hand Seamers, with forged steel jaws, also feature ergonomic RedLine Handle technology. An Engineered handle opening compliments the natural power stroke of any user’s hand and maximizes the powerful 7:1 mechanical advantage of compound-leverage head to handle linkage. Comfortable handle grip contours, a non-slip grip insert, spring handle actuation and a thumb-operated handle latch ensure a natural fit and feel for comfortable one hand operation anywhere on the job.
(click image to enlarge)
Quick Overview
Bend, fold, flatten, straighten sheet metal on the job.
Depth markings graduated in 1/4 inch (6.35 mm) increments to a full 1-1/4 inch (31.75 mm) jaw depth.
24 gauge (0.71 mm) capacity in galvanized steel.
Compou
Interested in this item or want more information?
8:00am - 5:00pm Monday thru Friday
Phone: 1-800-821-4927
Email:
Sales@marathontool.com
Can't find what you want? Give us a call and we can help you find it.
Details
Catalog #
Description
Jaw Width in. (mm)
Jaw Depth in. (mm)
Capacity: Steel Gauge Galvanized, Mild
Nominal Length in. (mm)
Net Weight oz. (g)
S2R
Hand Seamer
3-1/4 (82.55)
1-1/4 (31.75)
24 (0.71), (0.61)
222
680
S2R SV
Hand Seamer - South Pacific Only
3-1/4 (82.55)
1-1/4 (31.75)
24 (0.71), (0.61)
222
680
S3R
Offset Hand Seamer
3-1/4 (82.55)
1-1/4 (31.75)
24 (0.71), (0.61)
216
680
S3R SV
Offset Hand Seamer - South Pacific Only
3-1/4 (82.55)
1-1/4 (31.75)
24 (0.71), (0.61)
216
680
S6R
Hand Seamer
6 (152.5)
1-1/4 (31.75)
24 (0.71), (0.61)
8-3/4 (222)
30 (851)
S6R SV
Hand Seamer - South Pacific Only
6 (152.5)
1-1/4 (31.75)
24 (0.71), (0.61)
8-3/4 (222)
30 (851)
Additional Information
Manufacturer: Malco
For More Information on the Offset Hand Seamer with Forged Jaws,
[Click Here]
to Link to Manufacturer Web Site
